Manufacturer: Boeing Country of Origin: USA

Model: Boeing 707

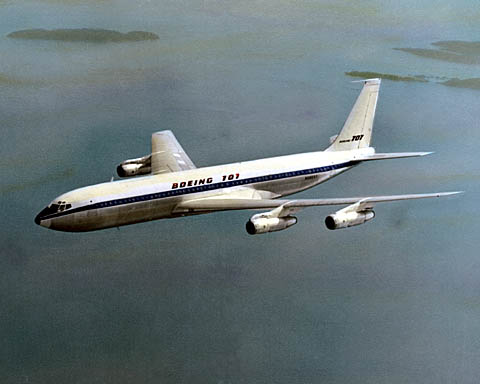

The Boeing 707

America entered the age of the jet transport on July 15, 1954, when the Boeing 707 prototype, the model 367-80, made its maiden flight from Renton Field, south of Seattle. Forerunner of the more than 8,000 Boeing jetliners built since, the prototype, nicknamed the "Dash 80," served 18 years as a flying test laboratory before it was turned over to the Smithsonian Air and Space Museum in May 1972.

In May 1990, under an arrangement with the Smithsonian, Boeing returned the airplane to Seattle for full restoration after it spent 18 years in the Arizona desert. The refurbished Dash 80 made a special fly-over of the five Boeing facilities in the Puget Sound area on July 15, 1991, to commemorate the 75th anniversary of The Boeing Company and the 37th anniversary of its own first flight. The airplane is now on view at Boeing Field.

Production go-ahead for the Dash 80 was announced by Boeing Aug. 30, 1952, as a company-financed $16 million investment. The airplane rolled from the factory less than two years later, on May 14, 1954. Its first flight that July marked the 38th anniversary of The Boeing Company.

Powered then by four Pratt & Whitney JT3 turbojets, mounted under wings swept back 35 degrees, the Dash 80 established the classic configuration for jetliners to come. It also set new speed records each time it flew. This was illustrated March 11, 1957, when it streaked nonstop on a press demonstration flight from Seattle to Baltimore in 3 hours 48 minutes at an average speed of 612 mph.

The Dash 80 was retained as a Boeing test aircraft and underwent major structural and aerodynamic changes in the course of developing and testing advanced aircraft features. Many test programs were aimed far beyond aircraft flying today, such as airborne simulation of flight characteristics and systems concepts for a U.S. supersonic transport.

The Dash 80 flew with a fifth engine mounted on the aft fuselage to test installation feasibility for the trijet 727 and with three different types of engines installed at the same time. It investigated engine-thrust reversers, engine sound suppressers, rigs designed to cause in-flight engine icing conditions, air conditioners, and wing flap and slat modifications.

It was also used to test radar and radar antennas, and even different paints. In one test series for landing gear, the 707 prototype was outfitted with oversized tires; it landed and took off from mud fields barely able to support the weight of passenger automobiles.

The 707 prototype also flew special landing-approach studies at Moffett Field, California, for the National Aeronautics and Space Administration. A high-lift, slow speed system featuring special wing flaps for direct-lift control was used in steeper-than-usual landing approaches designed to alleviate community noise in airport areas.

During its early years, the airplane was the center of attraction in the aviation world, giving many airline pilots, airline executives, and military and government officials their first taste of jet flying. It has approximately 3,000 hours of flight recorded in its logbook.

The prototype led to a revolution in air transportation. Although it never entered commercial service itself, it gave birth to the 707 series of jetliners. Much larger, faster and smoother than the propeller airplanes it was replacing, it quickly changed the face of international travel.

Commercial history was made Oct. 26, 1958, when Pan American World Airways inaugurated trans-Atlantic 707 jet service between New York and Paris; jetliners then rapidly entered service throughout the world.

The first commercial 707s, labeled the 707-120 series, had a larger cabin and other improvements compared to the prototype. Powered by early Pratt & Whitney turbojet engines, these initial 707s had range capability that was barely sufficient for the Atlantic Ocean. A number of variants were developed for special use, including shorter-bodied airplanes and the 720 series, which was lighter and faster with better runway performance.

Boeing quickly developed the larger 707-320 Intercontinental series with a longer fuselage, bigger wing and higher-powered engines. With these improvements, which allowed increased fuel capacity from 15,000 gallons to more than 23,000 gallons, the 707 had truly intercontinental range of over 4,000 miles in a 141-seat (mixed class) seating configuration.

Early in the 1960s, the Pratt & Whitney JT3D turbofan engines were fitted to provide lower fuel consumption, reduce noise and further increase range to about 6,000 miles.

The Offspring of the 707
Following the success of the 707, Boeing has developed seven commercial jetliner models, each tailored to specific air route requirements. With the family, the company has captured about 65 percent of the world's air transport market.

The Boeing jetliners are similar in many ways; four models, the 707, 727, 737 and 757, have the same body width:

Model Range
707-120 and 720 medium-to-long
707-320 Intercontinental very long
717-200 short
727 trijet short-to-medium
737 twinjet short-to-medium
747 Superjet very long
757 twinjet medium-to-long
767 twinjet medium-to-long
777 twinjet long

Military Derivatives
Yet another aircraft type that traces its ancestry to the 707 prototype is the U.S. Air Force KC/C-135 tanker-transport/cargo airplane. Boeing built 820 of these aircraft for the Strategic Air Command and the Military Air Transport Service (predecessor of the Military Airlift Command). The KC/C-135 series was initially designated within The Boeing Company as the model 717. In January 1998, the 717 model number was reassigned to the commercial line for the 717-200 regional jetliner.

Additionally, three 707-120s plus two 707-320Bs, designated VC-137s, were delivered to the Military Airlift Command for transporting high government officials. These 707s transported the President for more than 30 years until replaced in 1990 by two 747-200s designated as VC-25s.

Recent military applications of the 707 are the E-3 Airborne Warning and Control System or AWACS (used by the U.S. Air Force, NATO, the Saudi government and the French and British air forces for airborne surveillance, command and control) and the E-6 used by the U.S. Navy for submarine communications.

When the 707 production line was closed at the end of May 1991, Boeing had sold 1,010 of all types (not counting the KC-135 series).

367-80 Prototype Specifications (1954)
Wingspan 130 feet (39.6 m)
Length 128 feet (39 m)
Wing Area 2,402 square feet (223 m2)
Gross Weight 160,000 pounds (86,184 kg)
Cruising Speed 550 mph (885 km/h)
Range 3,530 miles with reserves (5,681 km)
Service Ceiling 43,000 feet (13,106 m)
Power Four Pratt & Whitney JT3 turbojets of 10,000 pounds thrust each

Note: No standard passenger accommodation in the prototype.

Advanced 707-320B Specifications
Wingspan 145 feet 9 inches (44.42 m)
Length 152 feet 11 inches (46.6 m)
Wing Area 3,010 square feet (280 m2)
Gross Weight 336,000 pounds (152,400 kg)
Cruising Speed 607 mph (977 km/h)
Range 6,160 miles (9,913 km)
Service Ceiling 36,000 feet (10,973 m)
Power Four Pratt & Whitney JT3D turbofans of 18,000 pounds thrust each
Passenger Cabin 141 passengers mixed class or a maximum of 189 all economy
